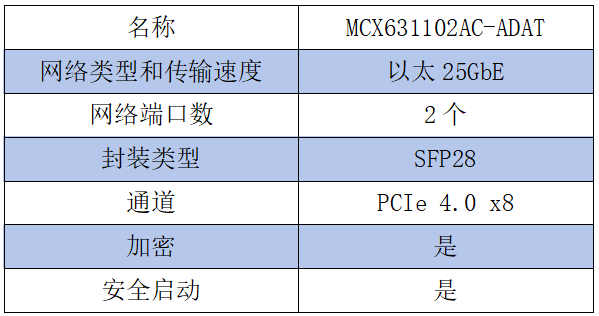

ConnectX-6 Lx EN adapter card, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Cryp to and Secure Boot, Tall Bracket
NVIDIA® Mellano ® Connect ®-6 SmartNIC 提供了过去版本的所有现有创新功能和多项增强功能，通过引入新的加速引擎来最大限度地利用云、Web 2.0、大数据、存储和机器学习应用程序，从而进一步提高性能和可扩展性。
ConnectX-6 支持两个 200Gb/s 以太网连接端口，低于 800 纳秒的延迟和每秒 2.15 亿条消息，为要求最苛刻的应用程序和市场提供更高性能和更灵活的解决方案。ConnectX-6 是对 ConnectX 系列行业领先的网卡卡的开创性补充，提供多项增强功能，可进一步提高性能和可扩展性，并增加了对 200/100/50/40/25/10/1GbE 以太网速度和 PCIe Gen4 的支持。此外，ConnectX-6 以太网卡可以连接多达 32 通道的 PCIe，实现 200Gb/s 的带宽，即使在 3.0 代 PCIe 系统上也是如此。
主要特性
- 每秒最多 2.15 亿条消息
- NVGRE 和 VXLAN 封装流量的硬件分流
- 增强的 vSwitch/vRouter 分流
- NVIDIA Mellanox PeerDirect™ 通信加速· NVMe over Fabric (NVMf) 目标分流
ConnectX-6 Lx 25/50G Ethernet SmartNIC
Smart, Accelerated Networking for Modern
Enterprise Data Centers.
NVIDIA® ConnectX®-6 Lx Ethernet smart network interface cards (SmartNIC)
deliver scalability, high performance, advanced security capabilities, and accelerated
networking with the best total cost of ownership for 25GbE deployments in cloud
and enterprise data centers. The SmartNICs support up to two ports of 25GbE,
or a single-port of 50GbE connectivity, along with PCI Express Gen3 and Gen4 x8
host connectivity to deliver cutting-edge performance and security for
uncompromising data centers.
SDN Acceleration
NVIDIA ASAP2 - Accelerated Switch and Packet Processing™ technology offloads
the software-defined networking (SDN) data plane to the SmartNIC, accelerating
performance and offloading the CPU in virtualized or containerized cloud data
centers. Customers can accelerate their data centers with an SR-IOV or VirtIO
interface while continuing to enjoy their SDN solution of choice. The ConnectX-6
Lx ASAP2 rich feature set accelerates public and on-premises enterprise clouds
and boosts communication service providers (CSP) transition to network function
virtualization (NFV). ASAP2 supports these communication service providers
by enabling packet encapsulations, such as MPLS and GTP, alongside cloud
encapsulations, such as VXLAN, GENEVE, and others.
Industry-leading RoCE
Following in the ConnectX tradition of providing industry-leading RDMA over
Converged Ethernet (RoCE) capabilities, ConnectX-6 Lx enables more scalable,
resilient, and easy-to-deploy RoCE solutions. With Zero-Touch RoCE (ZTR), the
ConnectX-6 Lx allows RoCE payloads to run seamlessly on existing networks
without special configuration, either to priority flow control (PFC) or explicit
congestion notification (ECN), for simplified RoCE deployments. ConnectX-6 Lx
ensures RoCE resilience and efficiency at scale.
Secure Your Infrastructure
In an era where data privacy is key, ConnectX-6 Lx adapters offer advanced, built-
in capabilities that bring security down to the endpoints with unprecedented
performance and scalability. ConnectX-6 Lx offers IPsec inline encryption and
decryption acceleration. ASAP2 connection-tracking hardware offload accelerates
Layer 4 firewall performance.
ConnectX-6 Lx also delivers supply chain protection with hardware root-of-trust
(RoT) for secure boot and firmware updates using RSA cryptography and cloning-
protection, via a device-unique key, to guarantee firmware authenticity.
Features*
Network Interface
> 2 ports of 10/25GbE or 1 port of 50GbE
> Up to 50Gb/s total bandwidth
Host Interface
> PCIe Gen 4.0 compatible, 8 lanes
> MSI/MSI-X mechanisms
Enhanced Networking
> Zero-Touch RoCE
> ASAP² Accelerated Switch and
Packet Processing for SDN and
VNF acceleration
> Single Root I/O Virtualization (SR-IOV)
> VirtIO acceleration
> Overlay network acceleration:
VXLAN, GENEVE, NVGRE
> Programmable flexible parser
> Connection tracking (L4 firewall)
> Flow mirroring, sampling
and statistics
> Header rewrite
> Hierarchical QoS
> Stateless TCP offloads
Cybersecurity
> Inline hardware IPsec encryption
and decryption
> AES-XTS 256/512-bit key
> IPsec over RoCE
> Platform security
> Hardware root-of-trust
> Secure firmware update
Management and Control
> NC-SI, MCTP over SMBus and MCTP
over PCIe - Baseboard Management
Controller interface, NCSI over RBT
in OCP cards
> PLDM for Monitor and Control
DSP0248
> PLDM for Firmware Update DSP0267
Remote Boot
> Remote boot over Ethernet
> Remote boot over iSCSI
> Unified extensible firmware interface
(UEFI) support for x86 and Arm
servers
> Pre-execution environment (PXE) boot
